CAT C280-8 with Synchronous AC Generator Kato Engineering

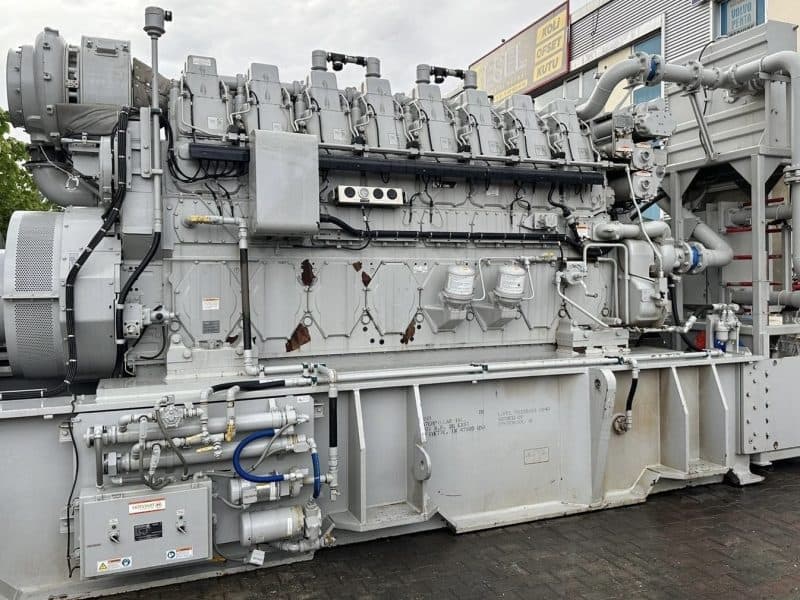

Used Caterpillar C280-8 inline-8 diesel, skid-mounted, coupled to a Kato Engineering synchronous AC generator. Engine (nameplate) Model: C280-8 Serial No.: NDT00103 Arrangement: 251-5863 Part No.: 336-2244 Rated power: 2,530 BkW @ 900 rpm Bare engine high idle: 909 rpm Rotation: CCW Max altitude (plate): 150 m Perf. specs: 3704844 / 0K9724 Injector P/N: 288-2403 · Turbo P/N: 284-8281 · ECM software: 341-3651 Origin: Made in USA (Caterpillar Inc., Lafayette, IN) Generator (Kato Engineering / Emerson) Model: AA28661000 · Serial: 25244-01 · Year: 2011 Output: 2,200 kW / 3,142.9 kVA · PF 0.7 Voltage: 346 / 600 V · 3-phase · 6-wire · 60 Hz · 900 rpm Current: 3,024 A · Enclosure: IP55 · Insulation: Class H Rotation: CW-FDE · Weight: ~26,700 lb / 12,110 kg Exciter: 52 A / 100 V field Bearings: DE 69719-243 (24 L) · ODE 69719-244 (10 L) · ISO VG 68 Package notes Skid-mounted genset-style layout with secondary fuel filtration, extensive piping, local gauges, and Hotstart. Suitable framing as a 2.2 MW / 60 Hz CAT C280-8 + Kato package.
